The Ultimate Filter Flasher

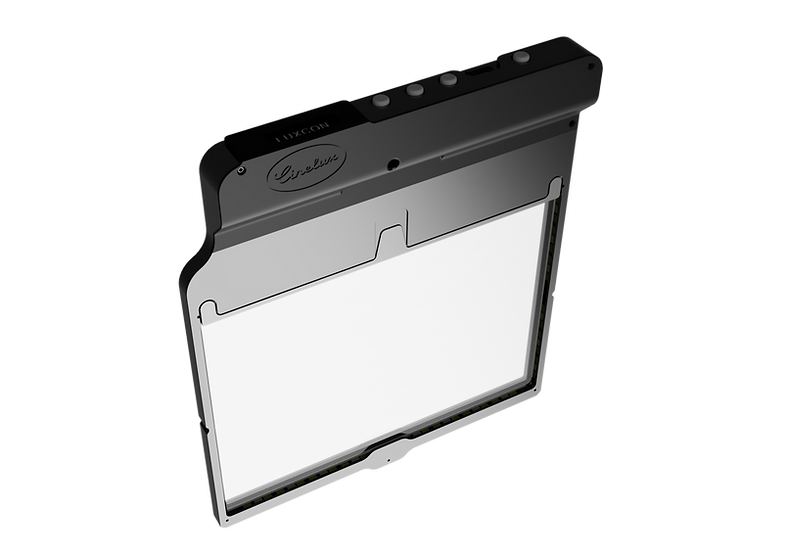

The LuxCon Pro is a follow-up to our elegant answer to the need for a more accessible filter flasher. It is the ultimate cintrast control and in camera lighting effect system. We formulated the LuxCon Pro to meet all the requirements of the most demanding sets. From multicam use, to DIT and DMX board control, we created the LuxCon Pro to be more accessible in every way.

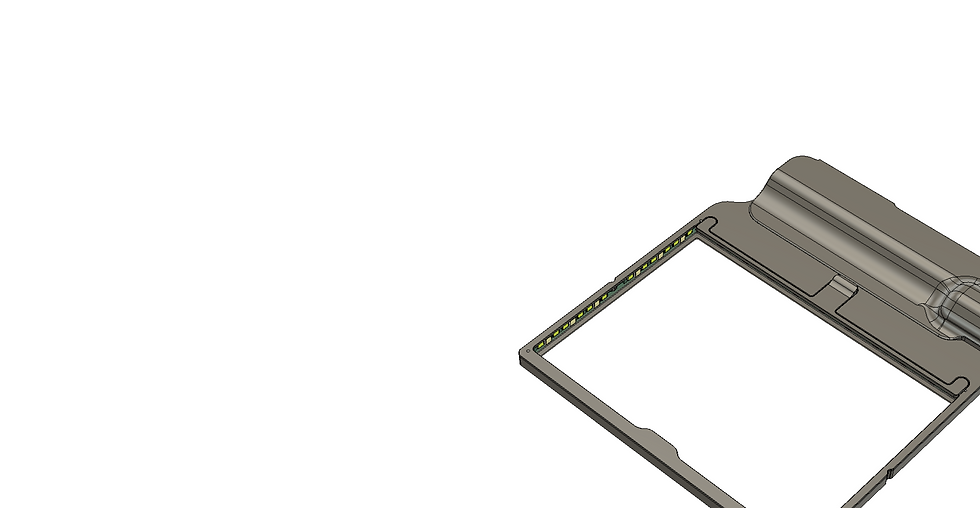

All this power, still packaged into a standard single tray 4x5 design. Fits all 4x5 glass diffusion, contrast, or atmosphere filters in most professional 4x5 matteboxes. Using the latest driver technology to achieve the highest resolution possible, each LED is fully addressable and programmable, giving you extremely finite detail.
FIVE WAYS TO CONTROL.
ONE SEAMLESS WORKFLOW.
With five ways to control, the LuxCon Pro gives you and your crew the most seamlessly integrated control so you can focus on your creative look. Wirelessly control through Wi-Fi, DMX, and Bluetooth; physically control with a simple menu accessible on the small integrated screen, or full external control with the optional LuxBox. Our dedicated web app allows you to address the LuxCon Pro through Wi-Fi. The Android and iOS Bluetooth app allows for easy wireless control.
Professional Optical Tools
For More Filmmakers
The LuxCon Pro is our next step in making professional filter flashing more accessible to every kind of production. A CRI 95 RGBWW LED engine delivers cinema-grade color rendering with full RGB plus tunable cool and warm white, while a single-stage Arri standard tray size and 2B 5-pin Lemo connection keep it compatible with the gear and workflows your crew already knows. We can't wait to see what everyone creates with it.
Five Ways to Control. One Seamless Workflow.
Five integrated control methods. Driven by The Highest Quality Components. Built to slot into any modern set.
Specs
• DMX wireless interface (proprietary cable optional)
• IP interface through LuxCon Control web app
• Bluetooth control via iOS and Android app
• CRI 95 LED
• RGBWW — RGB, Cool White, and Warm White
• Output at 7A: 1,356 lumens; 37,000 nits (no filter) / 31,500 nits (with filter)
• Max amp draw: 7A at 12V (standard)
• Max theoretical amp draw: 30A up to 26V
• Single-stage Arri standard tray size
• 2B 5-pin Lemo connection
